OVERVIEW

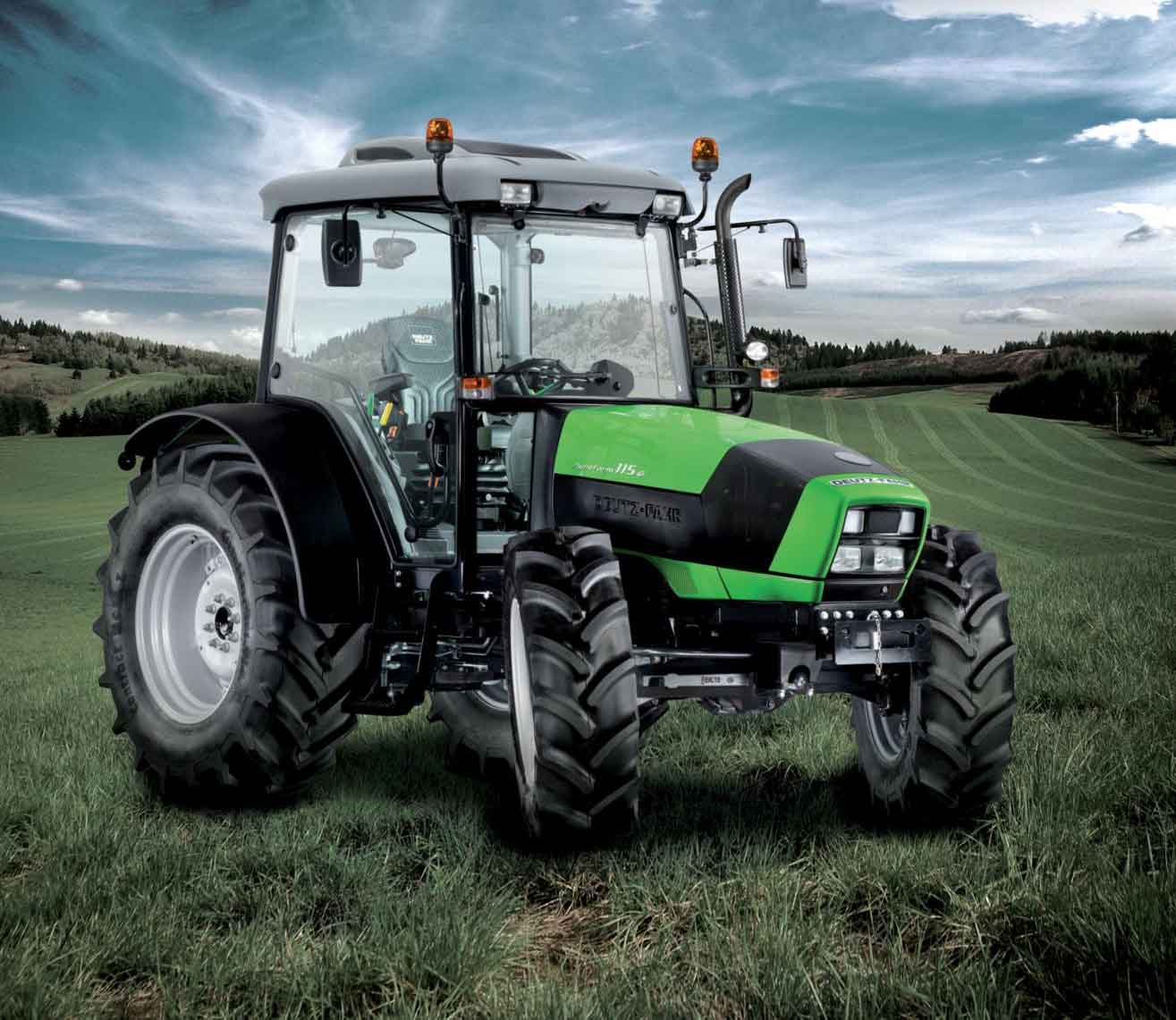

The Agrofarm G 115 Series provides the ideal answer to a wide variety of needs: offering productivity and versatility in the field, superior manoeuvrability for general farm tasks and speed for quick road transport applications. These tractors combine compact dimensions with comprehensive, high technology equipment to ensure outstanding comfort in all working conditions. All three models are offered as both LS and GS variants: the main difference between these two variants is that the LS is equipped with a synchronised mechanical reverse shuttle, while the GS has an electrohydraulic reverse shuttle.
COMPACT, VERSATILE AND POTENT.
The Deutz Fahr Agrofarm G115 Series features powerful four-cylinder SDF Series 1000 engines, ranging from 85 to 115 horsepower. Engine options include naturally aspirated for the G 85, and turbocharged with intercooler for the G 115, meeting Tier I and II emission standards respectively. These engines deliver ready power even at low speeds, coupled with exceptional fuel efficiency and reliability. With compact design and efficient cooling, they ensure reliable performance in various weather conditions. Additionally, the high-pressure injection system provides superior performance and torque, with maximum torque available at just 1600 rpm for exceptional elasticity.
EXTRAORDINARY MODULAR TRANSMISSIONS.
The Deutz Fahr Agrofarm G115 Series offers versatile transmission options tailored to different needs. LS versions feature a fully synchromesh four-speed, three-range gearbox with a mechanical reverse shuttle, providing twelve forward and reverse speeds and a top speed of 30 km/h. GS variants boast a five-speed, three-range gearbox, delivering fifteen forward and reverse speeds with a top speed of 40 km/h, alongside a standard electrohydraulic reverse shuttle offering five settings. Both LS and GS transmissions can be enhanced with a supercreeper gear or Powershift Hi-Lo gear, extending capabilities to twenty or thirty speeds respectively, and even forty speeds in both directions when combined. Additionally, a sealed transmission variant ensures durability in high-humidity environments, making it suitable for prolonged use in conditions like rice paddies.
SMOOTH POWER FOR MAXIMUM EFFICIENCY.
The hydraulic systems of the Agrofarm G series are equipped with a 56 l/min gear pump feeding an open centre circuit, to ensure complete compatibility even with implements with high hydraulic power demands. Another, separate pump is dedicated to the hydraulic steering system, ensures extremely smooth, easy steering action even at low engine speeds and when the lift and auxiliary distributors are operated. Completing the hydraulic system are two-way distributors (in standard configuration, while up to six ways are available as an option) and flow regulator and trailer braking regulator systems. The maximum capacity of the rear lift is 2150 kg for the Agrofarm G 85, 4200 kg for the Agrofarm G 100 and an impressive 4800 kg for the Agrofarm G 115.
AN EXTRAORDINARY COMPREHENSIVE PTO SOLUTION.
Agrofarm G tractors offer all four of the standard PTO speed modes (540, 540ECO, 1000 and 1000ECO), all of which selected and engaged electrohydraulically with an automatic load sensing function to ensure that the implement connected is always started progressively and smoothly.
The PTO is simple and rational to operate, with electrohydraulic controls and an LCD screen displaying the effective PTO speed, allowing the driver to use any implement in the ideal operating conditions. The front lift comes complete with a front PTO with a standard operating speed of 1000 rpm, while a synchronised PTO with independent output shaft is also available.
SAFETY AND RELIABILITY.
Available as both 2WD and 4WD variants, Agrofarm G tractors are equipped with independent wet disc brakes on all four wheels. This solution ensures car-like stability even under the hardest braking. The brakes are extremely reliable and durable, and ensure superlative levels of safety even at high speeds. An optional valve may also be fitted to disable the front brakes when necessary.
SUPEROIR COMFORT AND ERGONOMICS.

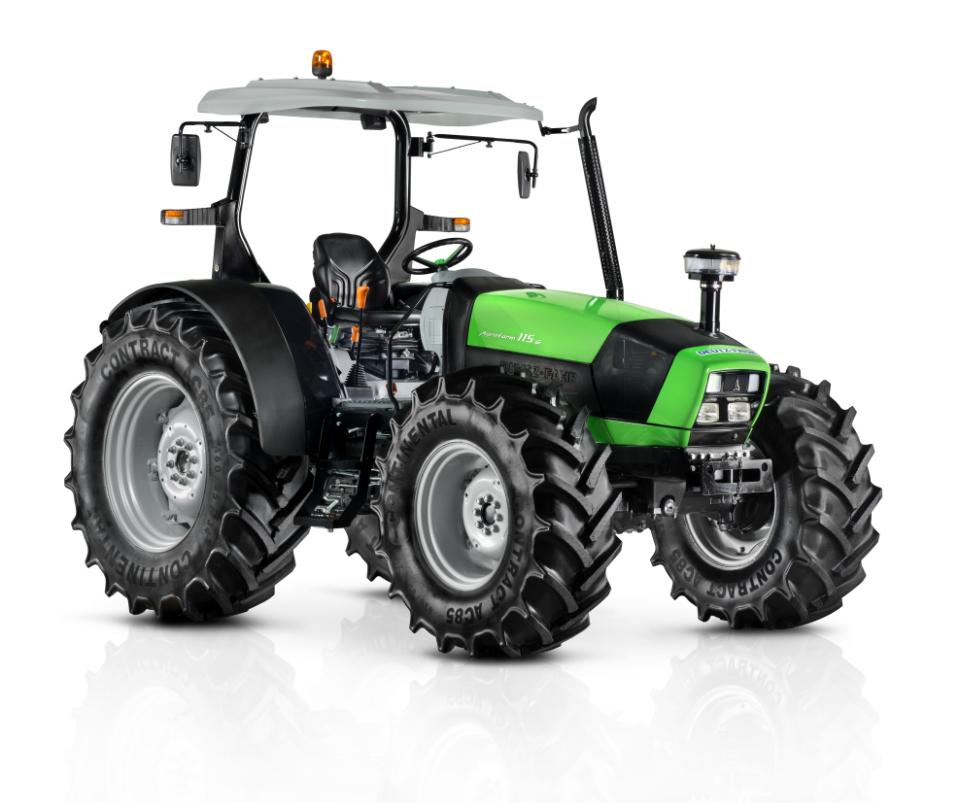

All Agrofarm G tractors are available as platform or cab variants. The latter come with a state of the art high visibility cab with just four pillars. Agrofarm G tractors boast a unique, distinctive design, minute attention to detail and superior ergonomics. The elements of the bodywork are attractively styled, while the modern look of the lights has a functional purpose to prevent interference with implements. The control levers are rationally and intuitively organised, while the intelligent layout of the instrumentation lets the driver immediately and constantly monitor the main functions of the machine.
